Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: Sunfull
  • Model Number: SF-AL58/15
  • Type: Pressurized
  • Application: solar heat
  • Pipe Material: heat pipe
  • Heating System: Thermosyphon (Passive)
  • Installation: Freestanding
  • Connection Type: Direct-Plug
  • Certification: CE CCC ISO9001
  • Housing Material: Galvanized Steel/Stainless Steel/Alumimum Alloy
  • Frame: Alumimum Alloy
  • Capacity: 150L
  • Warranty: 5 Years
  • Size: Custom Made
  • Use: Bathroom.washing

Packaging & Delivery

Packaging Details standard export packing carton
Delivery Time 10-15days

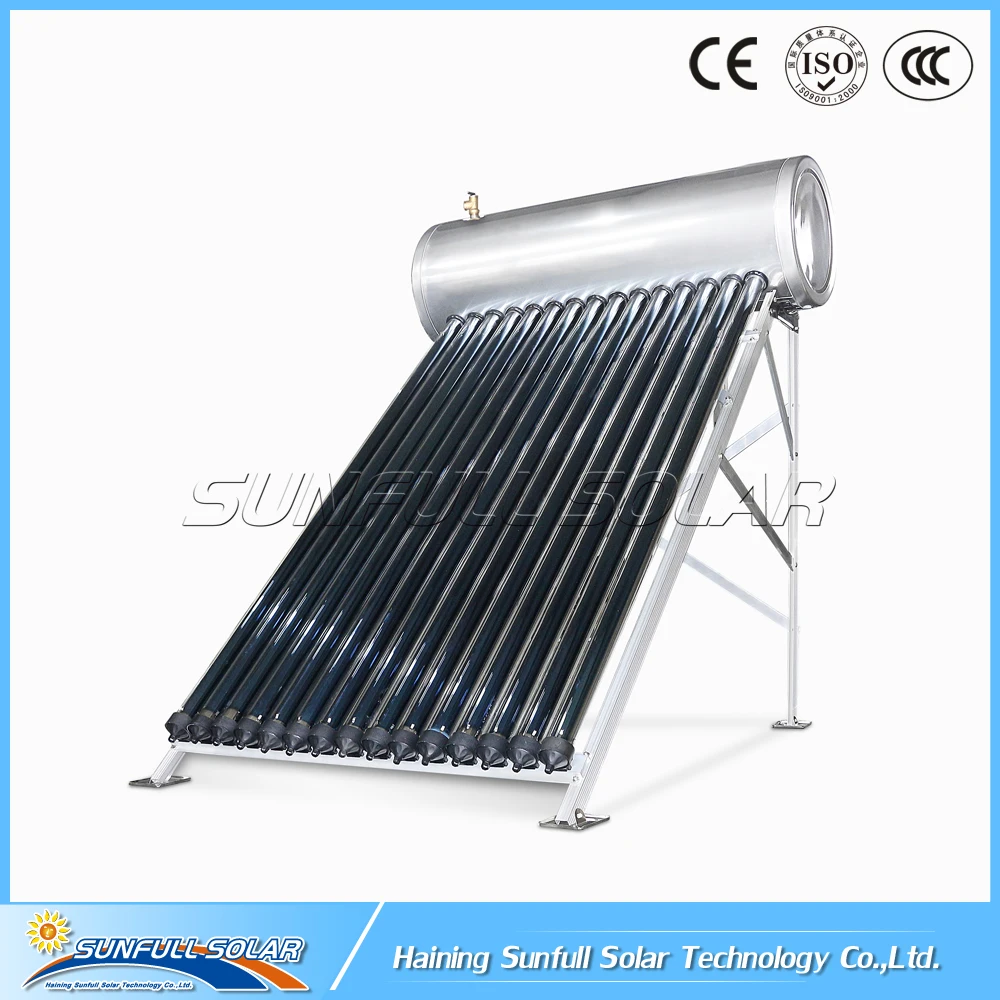

Product Introduction

Highly Efficient Pressurized Thermosiphon


Evacuated Tube Solar Hot Water System

Description
Highly Efficient Pressurized Thermosiphon Evacuated Tube Solar Hot Water System
Material of outer tank
Galvanized Steel/Stainless Steel
Thickness of outer tank
0.31mm-0.5mm
Diameter of outer tank
Normally 460mm
Material of inner tank
SUS304-2B (food grade) Stainless Steel
Thickness of inner tank
1.2mm
Diameter of inner tank
Normally 360mm
Insulation Layer
Polyurethane Foaming
Thickness of Insulation Layer
50-65mm

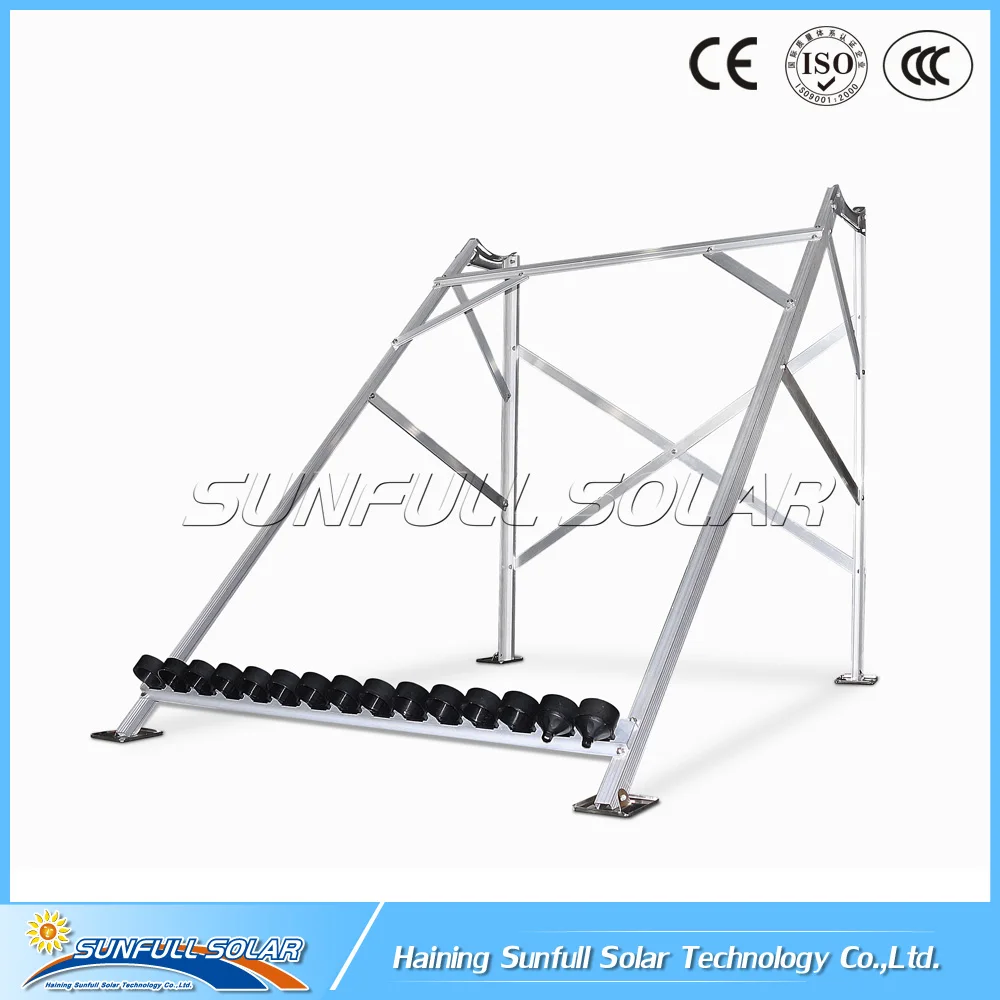

Bracket
Aluminium Alloy
Angle of Frame
0-45 degree
System Capacity
150L
Heat Preservation
72 hours
Hail Resistance
25mm
Optional Accessories
Assistant Tank, Electric Heater, Controller, Magnesium Anode, etc.

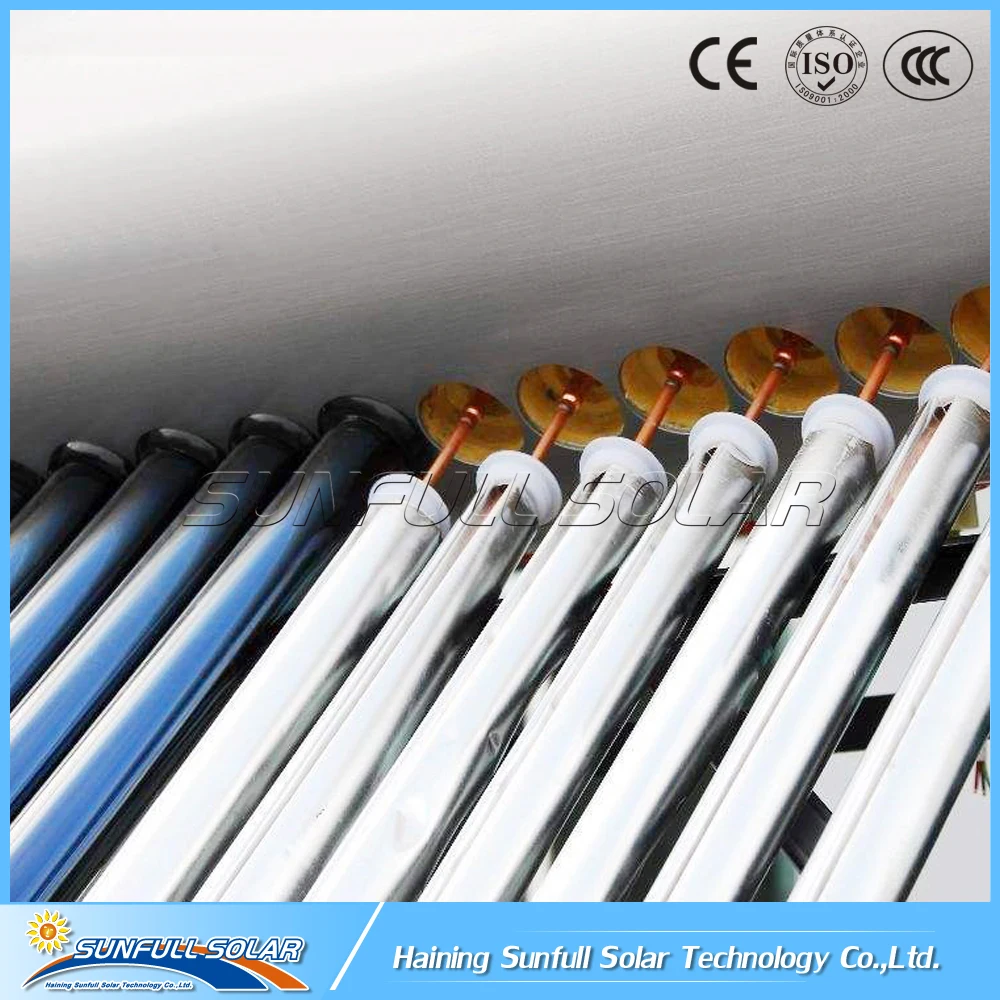

HEAT PIPE VACUUM TUBES SPECIFICATION
Tube structure
All-glass double deck co-axial structure and copper heat pipe inside
Glass material
Borosilicate 3.3 glass
Outer tube diameter & thickness
Ø58±0.7mm;
Glass thickness 1.6±0.15mm
Inner tube diameter & thickness
 Ø47±0.7mm;
Glass thickness 1.6±0.15mm
Tube size
Ø58mm *1800mm



Absorptive coating material
Structure
 Cu/SS ALN(H)/SS-ALN(L)/ALN
Sediment method
 Three targets - magnetron sputtering plating
Absorption
  0.93-0.96(AM1.5)
Emission
0.04-0.06(800C±50C)
Solar irradiation for obtaining a preset water temperature
Φ=58 H≤4.7MJ/m²
  H=4.1-4.4MJ/m² / H=3.7-4.2MJ/m²
Vacuum tightness
5.0×10¯³ Pa
Idle sunning property parameters
260-300 m².C/KW
Average heat loss coefficient
ULT=0.4~0.6W/(M2.0C)
Model
Capacity(Liter)
Tube Specification
Tube Quantity
Packing Size(CBM)
Loading Quantity(Set)
20'GP
40'GP
40'HP
SF-NPS58-12
120L
Ø58*1800mm
12
0.432
66
136
160
SF-NPS58-15
150L
Ø58*1800mm
15
0.540
53
109
128
SF-NPS58-18
180L
Ø58*1800mm
18
0.648
45
91
106
SF-NPS58-20
200L
Ø58*1800mm
20
0.720
40
82
96
SF-NPS58-24
240L
Ø58*1800mm
24
0.864
32
68
80
SF-NPS58-30
300L
Ø58*1800mm
30
1.080
26
55
64
SF-NPS58-32
320L
Ø58*1800mm
32
1.152
24
51
60
Product Feature

Highly Efficient Pressurized Thermosiphon Evacuated Tube Solar Hot Water System

1). Highly efficient absorber of high performance with daily average efficiency over 50%;

2). Start up quickly, heat pipe transfer the heat energy into the storage tank in one direction;

3). Withstand pressure of 6 Bar, can be connected directly with city water;

4). No water inside the evacuated tubes; the solar water heater can still in service even with several tubes breakage

5). Highly efficient insulation with polyurethane foam;

6). Simple structure, easy to assembly and install;

7). Can be used all year round in the cold climate;

8). Can be used together with auxiliary electric boost;

9). Long service life, can be used over 15 years.

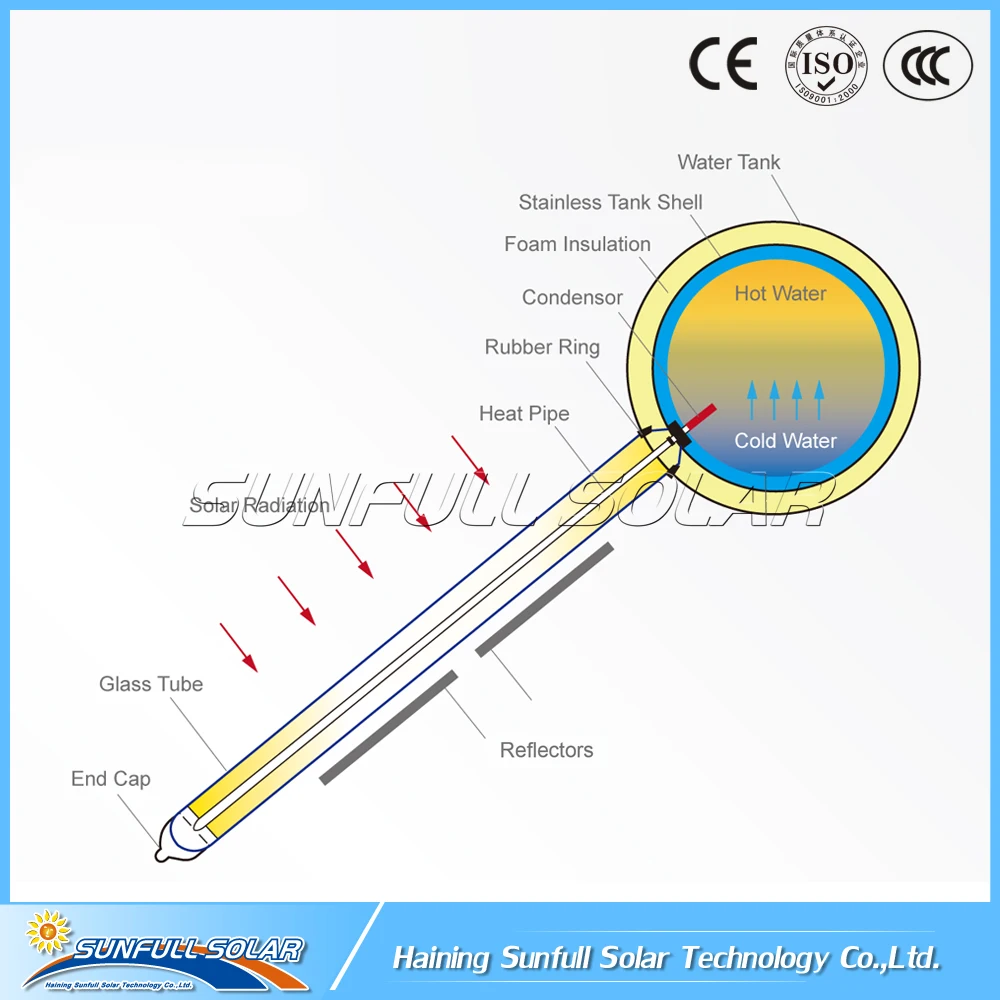

Working Principle

Working principle of compact pressurized solar water heater

Highly Efficient Pressurized Thermosiphon Evacuated Tube Solar Hot Water System

-Solar energy is absorbed and converted into heat energy by the absorption layer of vacuum tubes

-Heat energy is delivered to heat pipe through aluminum wings.


-Working liquid in heat pipe absorbs heat and vapors,it moves towards condenser and releases the latent heat of vaporization .

-As condenser indirectly contacts with water through a copper cap,the heat is passed through it to the water in tank.

-At the end,cold liquid returns to the bottom of heat pipe and repeats the cycle.

Accessories
Service

Pre-sale Service

1. Sample can be offered with sample charge and courier fee by buyer's side.

2. We have full stock,and can deliver within short time.Many styles for you to choose.

3. OEM and ODM order are accepted, Any kind of logo printing or design are available.

4. Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you

5. All of our products are produced by our professional workman and we have our high-work-effect foreign

trade team, you can totally believe our service.

6. We have rich experience of design, manufacture and sell solar water heater,

we cherish every order from our honor.

After you choose

1. We will count cheapest shipping cost and make invoice to you at once.

2. Check quality again, then send out to you at 1-2 working day after your payment,

3. Email you the tracking no, and help to chase the parcels until it arrive you.

After-sale service

1. We are very glad that customer give us some suggestion for price and products.

2. If any question,please contact with us freely by E-mail or Telephone.

FAQ

1. what is your delivery time?


· Sample in one week after payment.
· Twenty-Foot container order 10-15 days after deposit.

2. what is your Guarantee time?


· 3 years, and 1 years for accessories
· Provide you with some extra accessories for free

3. Can you accept OEM?

· Yes

4. What is your MOQ?

· 1 Twenty-Foot container

5. What is your Payment Term?

· We accept T/T or Western Union
